Geometry follows the floor plan

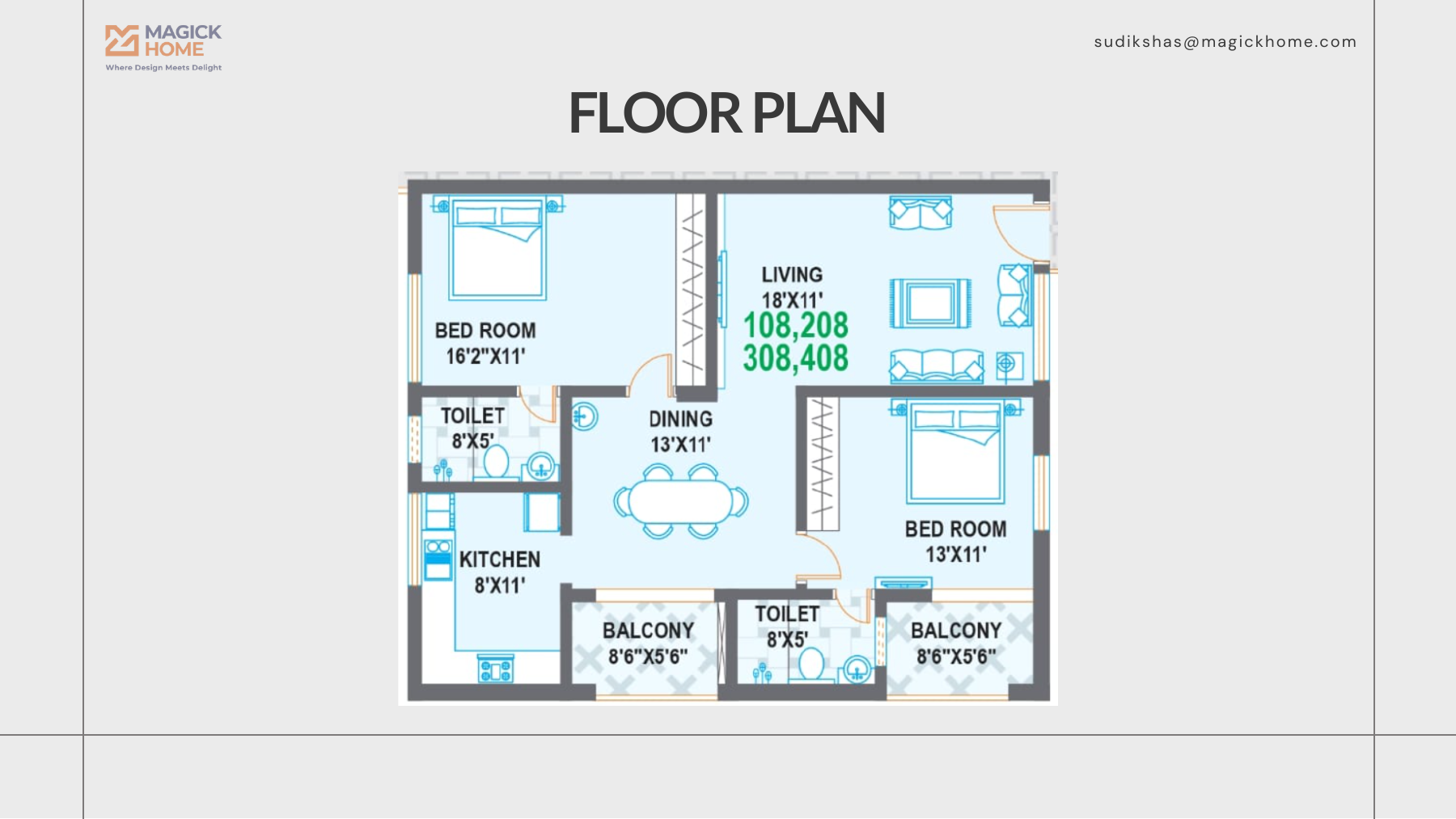

The page 2 plan is traced using a uniform scale of 0.0134 metres per image pixel at the saved 1800 px page width. The outer wall centreline footprint is approximately 10.40 × 8.39 m. Printed room dimensions remain the reference; this is not a measured CAD or construction model.

Your changes are applied

The projecting divider between kitchen and dining is removed. The kid’s bedroom balcony opening is moved to the left end of its balcony wall, immediately beside the attached bathroom, with the same width and height as the dining balcony opening. The original opening on the far side is filled.

Design interpretation

The upper-left bedroom is treated as the master, and the lower-right as the kid’s room. Cabinet colours, slats, marble panels, furniture and built-ins follow pages 3–9. Furniture is simplified; exact furniture sizes and full elevations are not supplied. Walls are assumed 2.85 m high, internal thickness 0.15 m and external thickness 0.23 m. Door and window sizes are estimated from the plan.

Arrange furniture

Choose Edit furniture to drag items along the floor, rotate them, or enter exact positions. Use Undo to reverse changes. Arrangements save in this browser. Wall surfaces and bathroom fittings stay fixed.

Inspect the model

Use Floor plan and the overlay to compare wall placement directly with the source. Full height restores all walls and opening lintels. Cutaway lowers exterior walls; Low walls lowers every wall. Room buttons move the camera; orbit freely for other angles.
